Thiết bị tường lửa FortiGate 40F (FG-40F), chưa bao gồm license UTP 12 tháng

Firewall-Fortinet-FortiGate-40F-(FG-40F)

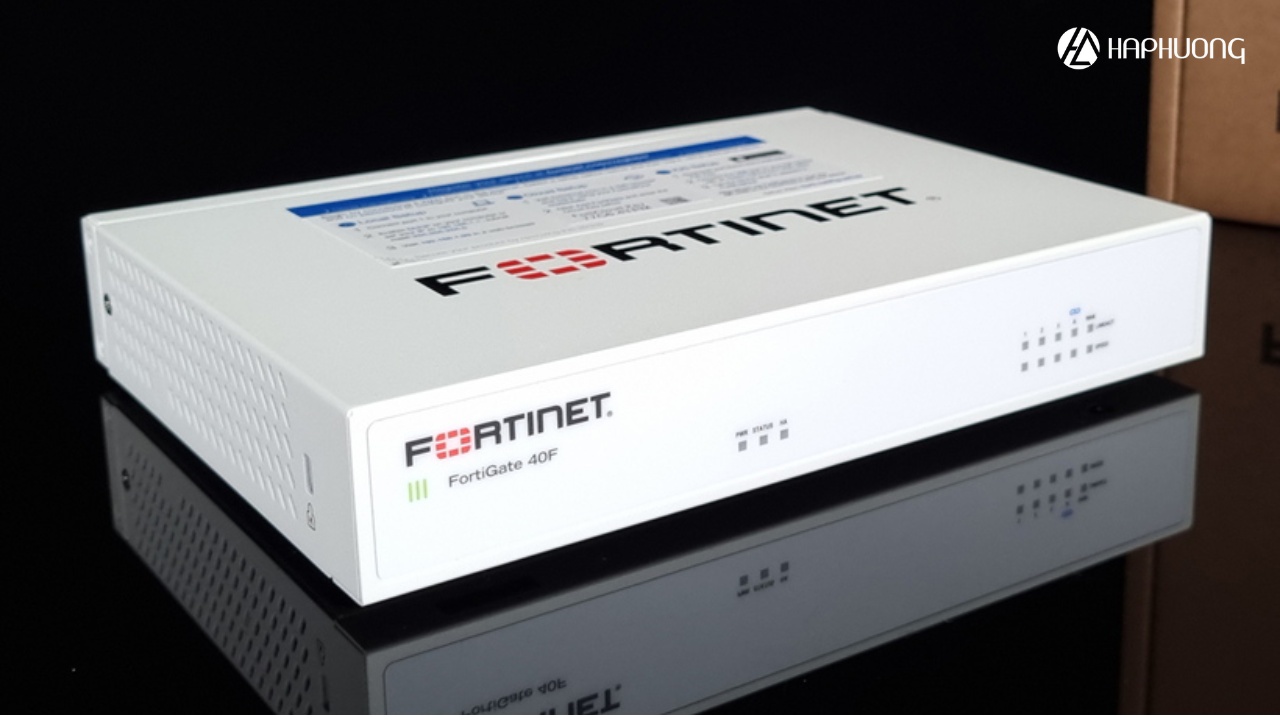

FortiGate 40F (FG-40F)
Giá đã có VAT - Bảo hành 12 tháng Để có giá ưu đãi tốt nhất, quý khách vui lòng gửi Email
- Mã SP: FG-40F | Tình trạng: Còn hàng

Liên hệ báo giá tốtTư vấn + báo giá chi tiết về sản phẩm

Thông tin sản phẩm

Thiết bị tường lửa FortiGate 40F (FG-40F), chưa bao gồm license UTP 12 tháng

Thiết bị tường lửa cho văn phòng, doanh nghiệp, chi nhánh từ 10-15 người dùng

Thông số kỹ thuật Firewall Fortinet FortiGate 40F (FG-40F):

FG-40F Specification
Interfaces and Modules
Hardware Accelerated GE RJ45 WAN / DMZ Ports	1
Hardware Accelerated GE RJ45 Internal Ports	3
Hardware Accelerated GE RJ45 FortiLink Ports (Default)	1
Hardware Accelerated GE RJ45 PoE/+ Ports	0
Wireless Interface	0
USB Ports	1
Console Port (RJ45)	1
Onboard Storage	0
Included Transceivers	0
System Performance — Enterprise Traffic Mix
IPS Throughput 2	1 Gbps
NGFW Throughput 2, 4	800 Mbps
Threat Protection Throughput 2, 5	600 Mbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	5 / 5 / 5 Gbps
Firewall Latency (64 byte, UDP)	2.97 μs
Firewall Throughput (Packet per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte) 1	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS) 3	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 3	320
SSL-VPN Throughput 490 Mbps SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3	55,000
Application Control Throughput (HTTP 64K) 2	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel)	16 / 8
Maximum Number of FortiTokens	500
Maximum Number of Registered FortiClients	20,000
High Availability Configurations	Active, Active-Active, Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor	Desktop
Input Rating	12Vdc, 3A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum)	13.4 W / 15.4 W
Current (Maximum)	100V AC / 0.2A, 240V AC / 0.1A
Heat Dissipation	52.55 BTU/h
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO	0
Maximum Wi-Fi Speeds	0
Maximum Tx Power	0
Antenna Gain	0
Note: All performance values are “up to” and vary depending on system configuration. 1. IPsec VPN performance test uses AES256-SHA256. 2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled. 3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites. 4. NGFW performance is measured with Firewall, IPS and Application Control enabled. 5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
