UniFi Switch Pro Aggregation

UniFi Switch Pro Aggregation
Giá đã có VAT - Bảo hành 12 tháng Để có giá ưu đãi tốt nhất, quý khách vui lòng gửi Email
- Mã SP: USW-Pro-Aggregation | Tình trạng: Còn hàng
UniFi Switch Pro Aggregation (USW-Pro-Aggregation)

Liên hệ báo giá tốtTư vấn + báo giá chi tiết về sản phẩm

UniFi Switch Pro Aggregation (USW-Pro-Aggregation)

Mechanical
Dimensions	442 x 325 x 44 mm
Dimensions	(17.4 x 12.8 x 1.7″)
Weight	Without Mount: 4.6 kg (10.14 lb)
Weight	With Mount: 4.7 kg (10.36 lb)
Enclosure Material	SGCC Steel
Hardware
Total Non-Blocking Throughput	380 Gbps
Switching Capacity	760 Gbps
Forwarding Rate	565.44 Mpps
Max. Power Consumption	100W
Power Method	(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
Power Method	(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply	AC/DC, Internal, 100W
Network Interface	(28) 1/10 Gbps SFP+ Ethernet
	(4) 1/10/25 Gbps SFP28 Ethernet*
	*The four SFP28 ports don’t support mixed speed at 25Gbps mode. Once one of the SFP28 ports is configured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps.

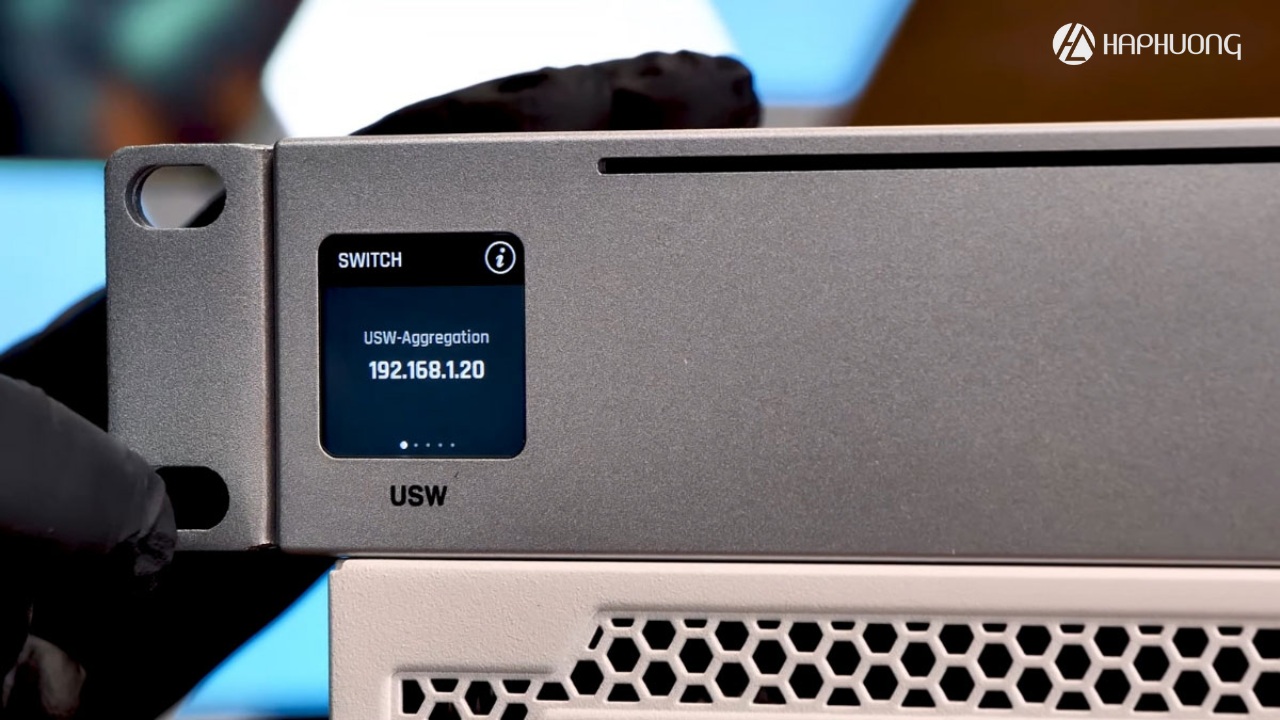

LCM Display	(1) 1.3″ Touchscreen
	Bootup Animation: Bootup in Progress
	Firmware Upgrade Icon: Firmware Upgrading
	Steady White: Factory Defaults, Awaiting Adoption
	Steady Blue: Device is Adopted
LEDs	SFP28/SFP+: White, Link and Activity
Management Interface	Ethernet In-Band
Modes	SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection	Air: ± 16kV, Contact: ± 12kV
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	10 – 90% Noncondensing
Certifications	CE, FCC, IC
