Bộ phát wifi Unifi AP InWall HD (UAP-IW-HD)

Unifi AP InWall HD (UAP-IW-HD)
Giá đã có VAT - Bảo hành 12 tháng Để có giá ưu đãi tốt nhất, quý khách vui lòng gửi Email
- Mã SP: UAP-IW-HD | Tình trạng: Còn hàng
Bộ phát wifi Unifi AP InWall HD (UAP-IW-HD)

Liên hệ báo giá tốtTư vấn + báo giá chi tiết về sản phẩm

Mechanical
Dimensions	139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
Weight	210 g (7.41 oz)
Hardware

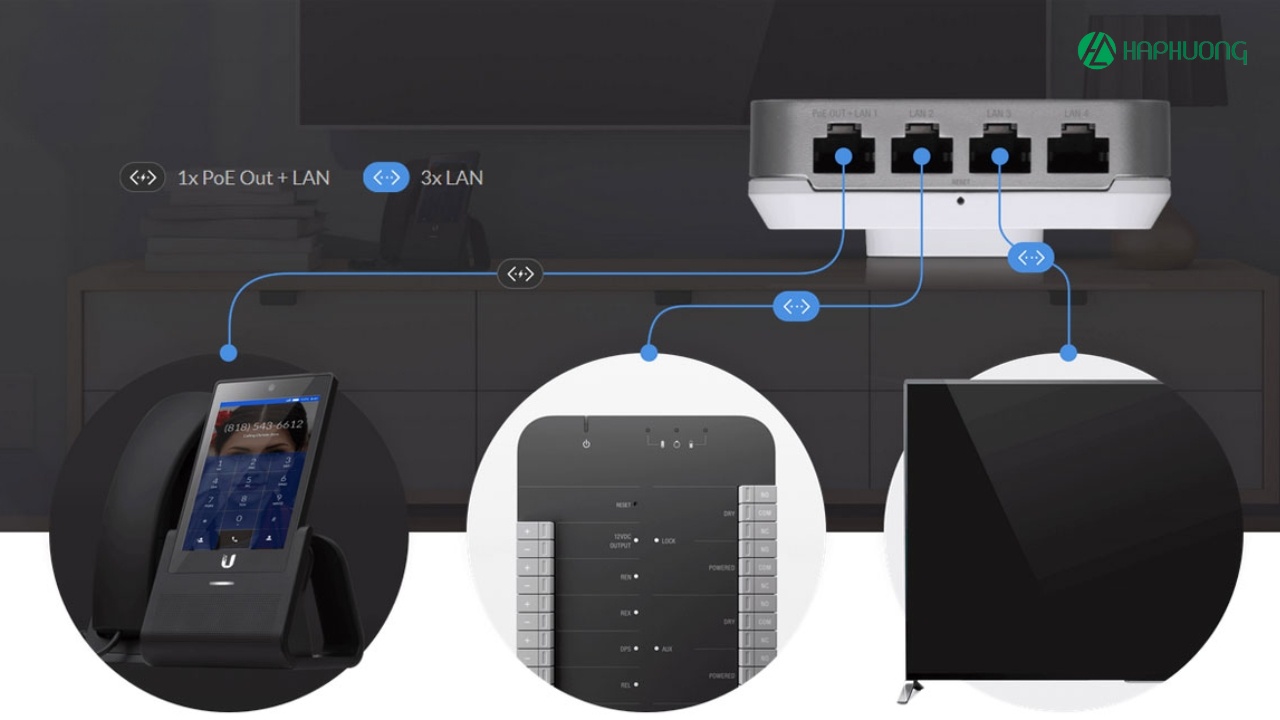

Networking Interface	(5) 10/100/1000 Ethernet Ports
Button	Reset
Power Method	PoE/PoE+
Supported Voltage Range	44 to 57VDC
Power Supply	UniFi Switch (PoE)
PoE Out	48V Passthrough (Pins +1, 2; -3, 6)
Maximum Power Consumption With PoE Passthrough	11W 23W* * Requires PoE+ switch
Max. TX Power 2.4 GHz 5 GHz	23 dBm 26 dBm
Dual-Band Antennas 2.4 GHz 5 GHz	(2) Single-Port, Single-Polarity Dual-Band Antennas 1.8 dBi Each 3.4 dBi Each
Single-Band Antennas 5 GHz	(2) Single-Port, Dual-Polarity, Single-Band Antennas 6 dBi Each
Mounting	1-Gang Electrical Wall Box (Not Included)
Operating Temperature	-10 to 60° C (14 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Software
WiFi Standards	802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID	Up to 8 per Radio
VLAN	802.1Q
Advanced QoS	Per-User Rate Limiting
Guest Traffic Isolation	Supported
Power Save	Supported
Beamforming	Supported
WMM	Voice, Video, Best Effort, and Background
Concurrent Clients	200+
Supported Data Rates (Mbps)
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
